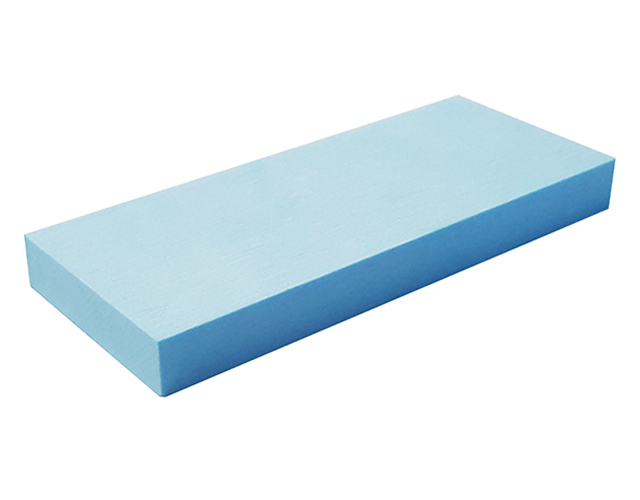

OBOMODULAN® EP 5060 BLAU

Compare
Applications

OBOMODULAN® EP 5060 BLAU ( 750kg/m3 ) machinable epoxy board tools for prepregs for draping tools for prepreg, control and cubing models, vacuum forming molds

Caracteristics

OBOMODULAN® EP 5060 BLAU is light Blue / density : 0.70 to 0.75 g / cm³ / Hardness : 70-80 Shore D / Flexural strength : 2400-2700 Mpa / Compressive strength : 65-70 Mpa / Linear thermal expansion coefficient temperature (from approx 25 up to 70 °C) : 30 - 40 (10-6 . K-1)

Property

OBOMODULAN® EP 5060 BLAU has a very fine surface structure, excellent machinability, dimensional stability, heat resistance up to 140 °C

Dangerous. Observe safety precautions - For professional use only
See the different packaging
Request for quotation
Request for information
Contactez-nous par téléphone au 04 26 680 680

Variations

This product is not available online.Contact us
Name Code article Price Availability
OBOMODULAN® EP 5060 BLAU
1524 x 610 x 150 mm
OB50600150 Contact us
OBOMODULAN® EP 5060 BLAU
1524 x 610 x 75 mm
OB50600075 Contact us
OBOMODULAN® EP 5060 BLAU
1524 x 610 x 100 mm
OB50600100 Contact us
OBOMODULAN® EP 5060 BLAU
1524 x 610 x 50 mm
OB50600050 Contact us

Caracteristics

Density 750 kg_m3
Chemistry / Technology Epoxy
Brand OBOMODULAN
Color Light Blue
Compression Strength (MPa) 70 MegaPa
Hardness Class Very Hard (Shore D56 - D100)
Hardness 80 Dshore
Maximum temperature (°C) 140 CELSIUS
Thickness 50 MILLIMETER
