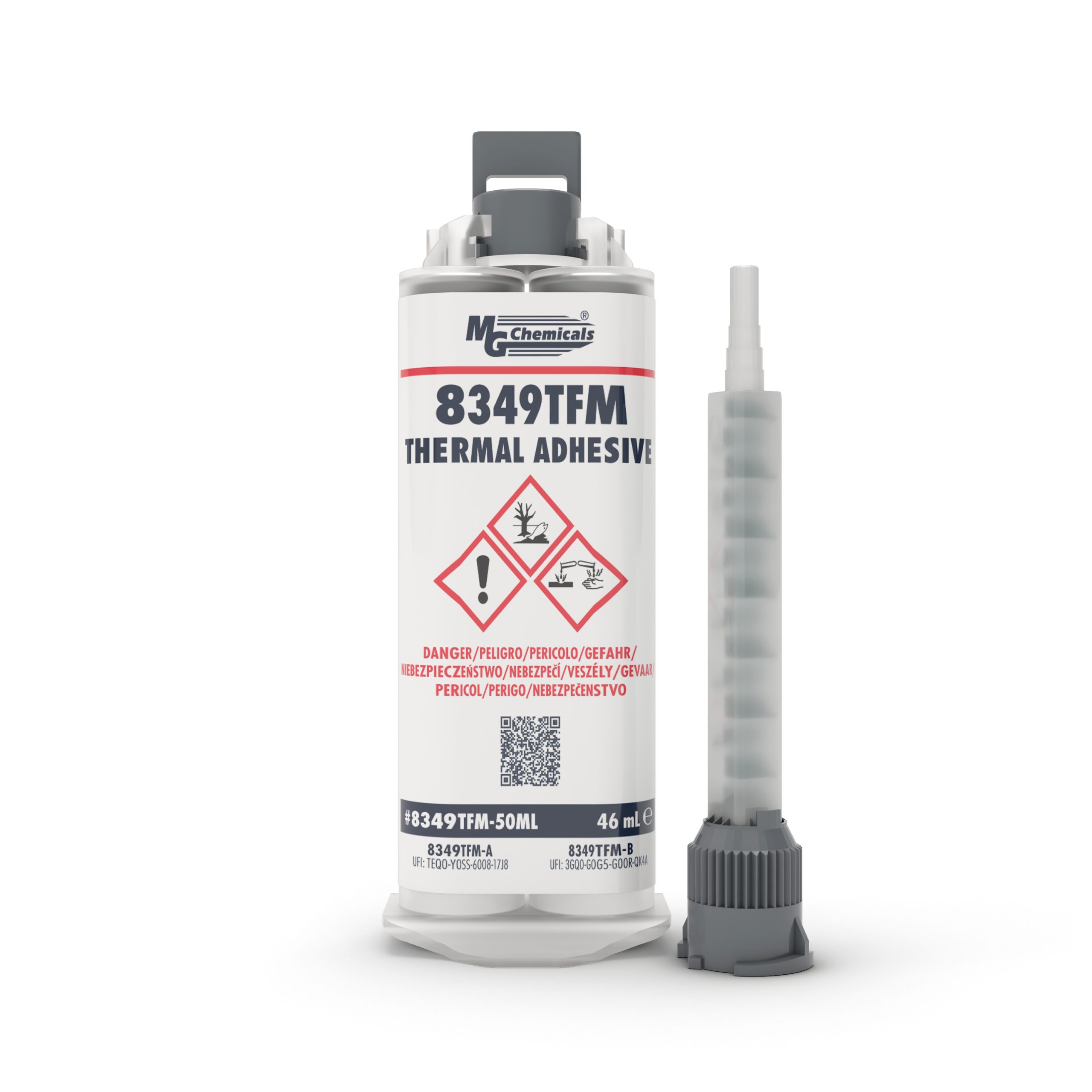

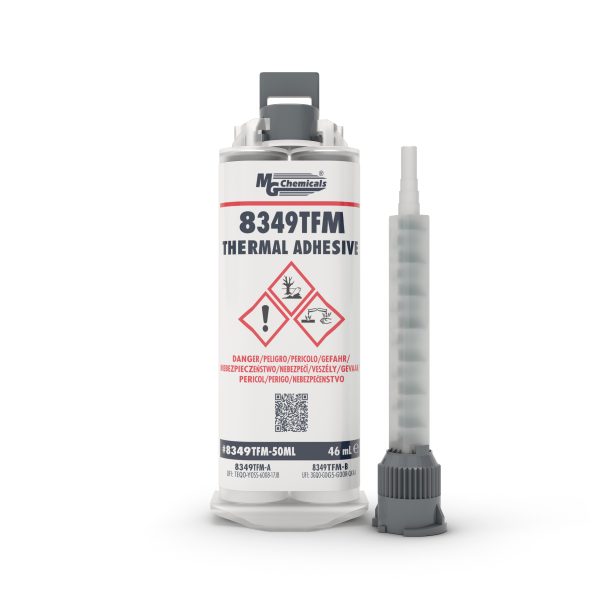

MG CHEMICALS 8349 TFM

Compare

Applications

MG CHEMICALS 8329 TFM is a thermally conductive adhesive (0.9W/m.K). This two-component epoxy meets the UL 94 V0 standard and adheres to multiple substrates: metals, ceramics, glass, as well as most plastics. MG CHEMICALS 8349 TFM is designed to attach heat sinks to electronic components such as processors (CPU), light-emitting diodes (LED), and other elements requiring efficient heat management.

Caracteristics

MG CHEMICALS 8329 TFM is a two-component epoxy resin / Mixing ratio: 1:1 / Working time: 20 min / Thermal conductivity: 0.9 W/m.K / Service temperature range: -65°C to +120°C / Hardness: Shore D 92 / Color: Dark gray

Property

MG CHEMICALS 8329 TFM provides effective electrical insulation, preventing short circuits between components. It offers strong resistance to moisture, saltwater, mild bases, and aliphatic hydrocarbons. Complies with UL 94 V-0 standard.

Dangerous. Observe safety precautions - For professional use only

See the different packaging

Request for quotation

Request for information

Contactez-nous par téléphone au 04 26 680 680

Name	Code article	Price	Availability
MG CHEMICALS 8349 TFM 50 ml Cartridge	MG8349T20		Contact us
MG CHEMICALS 8349 TFM 45 ml Kit	MG8349T30		Contact us

Name

Code article

Price

Availability

MG CHEMICALS 8349 TFM

50 ml Cartridge

MG8349T20

MG CHEMICALS 8349 TFM

45 ml Kit

MG8349T30

Caracteristics

Application Methode	Manual
Curing Type	Room Temperature Curing
Chemistry / Technology	Epoxy
Brand	MG CHEMICALS
Color	Grey
Hardness Class	Very Hard (Shore D56 - D100)
Hardness	92 Dshore
Electric Properties	Electrically Insulating
Number of Component	Bi Componant / 2 Parts
Maximum temperature (°C)	120 CELSIUS
Minimum temperature (°C)	-65 CELSIUS
Thermal Conductivity (W/m⋅K)	0.9 WmK
Thermal Management Solution	Thermaly conductive Adhesives

MG CHEMICALS 8349 TFM

Variations

Caracteristics
