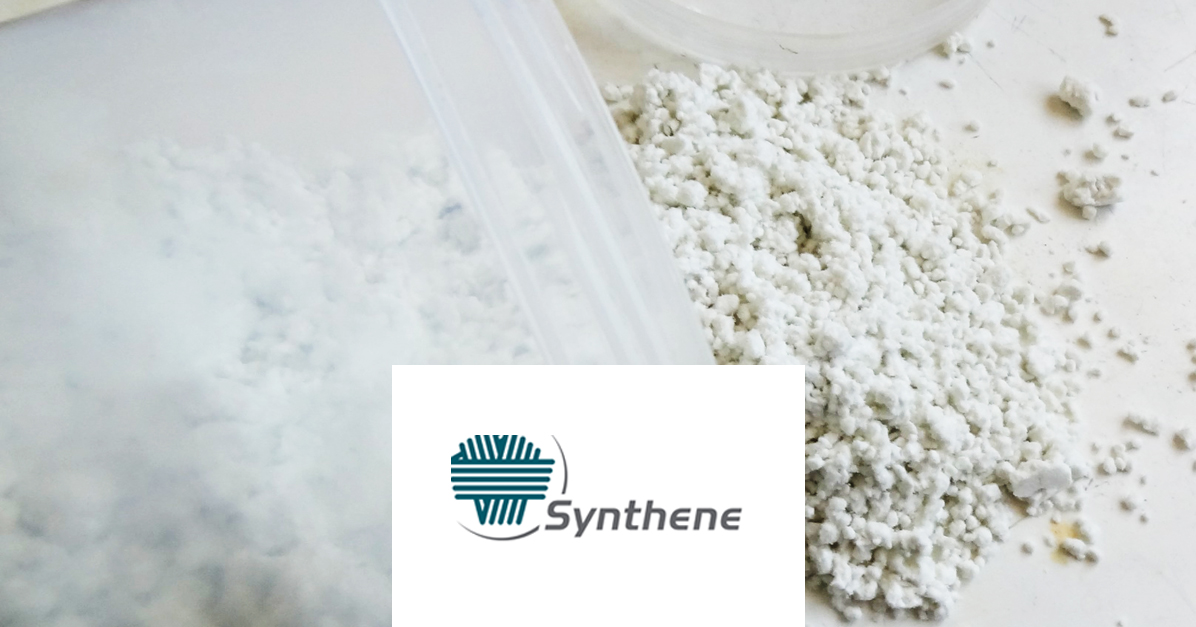

Synfill-G from Synthene, the new glass fibre filler for reinforcement
Why use SynFill-G fiberglass filler?
It is advantageous to use Synthene’s Synfill-G filler when we need to increase the tensile and flexural strength of the vacuum casting resin. The Synfill-G filler therefore allows the production of parts with higher flexural and tensile moduli of elasticity.
Synthene’s SYNFILL G filler is added between 15 and 25% to the resin at the time of mixing (such as PR700, PR777, PR500 …). It allows to almost double the flexural modulus of a resin, while remaining easily pourable in a silicone mould. It is compatible with all Synthene vacuum casting resins.
Benefits of SynFill-G glass fiber filler for vacuum casting resins
- Increased tensile and flexural strength
- Increased material rigidity
- Improvement of temperature resistance
- Reduced coin removal
- Wide range of possibilities depending on the applied load rate
How to use SynFill-G fibreglass filler?
 |
 |
 |
| 1. Weigh parts A and B of the polyurethane, add SynFill G to the Isocyanate part. | 2. Place parts A (Polyol) and B (Iso + SynFill G) of the polyurethane in the vacuum casting machine. | 3. Vacuum casting with a mould preheated to 70°C. |
Features of products loaded with SynFill-G
Exemple avec les résines Polyuréthane Synthene PR500 , Synthene PR700 et Synthene PR777
Synthene PR-500 : Vacuum casting resin for prototyping ABS-type parts. Colorable Intended for the production of mechanically resistant parts, even without post-curing.
| Countertype PC/PA Synthene PR-500 |
+15% SYNFILL G |
+20% SYNFILL G |
+25% SYNFILL G |
|
|---|---|---|---|---|
| Modulus of traction (MPa) | 2800 | 4400 | 4600 | 5600 |
| Viscosity | 1300 | 2100 | 2800 | 3100 |
| Flexion modulus (MPa) | 2600 | 4200 | 4500 | 5000 |
Synthene PR-700 : Black resin intended for the production of prototypes or small series. Any need for the production of parts requiring high thermal resistance and/or high mechanical properties.
| Contretype ABS Synthene PR-700 |
+15% SYNFILL G |
+20% SYNFILL G |
+25% SYNFILL G |
|
|---|---|---|---|---|
| Flexion modulus (MPa) | 1700 | 2700 | 3000 | 3400 |
| Maximum flexion stress (MPa) | 70 | 92 | 95 | 105 |
| Viscosity | 600 | 1000 | 110 | 1300 |
| Deflection temperature under load (°C) | 130/B | 118/A | 136/A | 142/A |
d casting resin for prototyping PP or HDPE type parts. Any need for the production of semi-flexible parts with high impact resistance and mechanically demanding quality such as clips or bumpers.
| Contretype PEHD/PP Synthene PR-777 |
+15% SYNFILL G |
+20% SYNFILL G |
+25% SYNFILL G |
|
|---|---|---|---|---|
| Modulus of traction (MPa) | 1000 | 1600 | 1900 | 2200 |
| Maximum tensile stress (MPa) | 32 | 34 | 38 | 40 |
| Flexion modulus (MPa) | 900 | 1600 | 1900 | 2200 |
| Maximum bending stress (MPa) | 35 | 50 | 58 | 64
|
More informations :
Synthene SynFill-G is available :
Download now :
- TDS Synthene SynFIll-G
- TDS Synthene PR500 + SynFill-G
- TDS Synthene PR700 + SynFill-G
- TDS Synthene PR777 + SynFill-G
For more information on Synthene resins and vacuum casting resins, download our Models, Moulding and Prototyping selection guide:
Need information about Synthene, or about vacuum casting and prototyping resins ? Contact our technical department on +33 426 680 680 or fill in our contact form.
