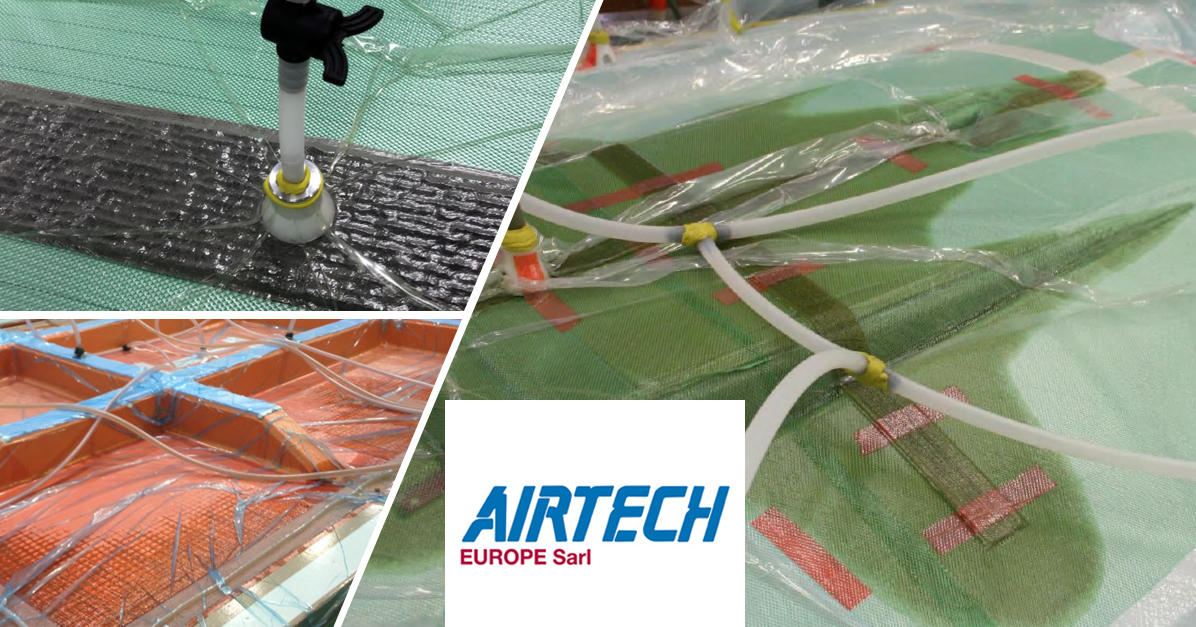

Find the Airtech product range dedicated to infusion preparation
Airtech, world leader in vacuum accessories and peripherals for the processing of composite materials
Airtech à sélectionner dans la large gamme une sélection de : Bâche à vide, Film démoulants micro-perforé, ruban adhésifs, films adhésifs démoulants, tissus d’arrachage, joints d’étanchéité, les produits pour amener et drainer la résine ainsi que l’ensemble des outils nécessaire pour la préparation de l’infusion.
- Resin flow mesh
- Combotech,
- and all the accessories you’ll need to prepare the infusion…
Resin flow mesh
| References | Maximum use Temperature | Mesh Weight | Mesh type | Resin flow speed |
|---|---|---|---|---|
| Airtech Greenflow 185 | 125°C | 185 g/m² | knitted HDPE | High |
| Airtech Knigtflow 160 | 212°C | 160 g/m² | knitted HDPE | High |
| Airtech Greenflow 75 | 150°C | 88 g/m² | Extruded PP | Medium |
Combothech
| References | Maximum use Temperature | Resin flow mesh | Perforated release film | Peel Ply |
|---|---|---|---|---|
| -Airtech Flowlease 75-37P16 | 121°C | Airtech Greenflow 75 | Airtech Wrightlon 3700 P16 | |
| Airtech Ipplon KM 1300 | 121°C | Airtech Knigtflow 160 | Airtech Wrightlon 3700 P16 | |
| Airtech Flowpeel 160-37P16-EST | 121°C | Airtech Knigtflow 160 | Airtech Wrightlon 3700 P16 | Airtech Econostich |
Accessories for infusion
| References | Maximum use Temperature | Colour | material |
|---|---|---|---|
| Airtech Flowstrip | 155°C | – | Mesh in PP in polyester sheath available in 2″ and 4″. |
| Airtech ResinTrak & VacTrak | 190°C | White (VacTrak avec face adhésive) |
Polyester grid |
| Airtech Dahlpac MC 79 | 125°C | Blue | Nylon fabric with PP grid |
| Airtech SpiralMesh ½ & 3/4 | 121°C | White | PP (spiral hose + grid) |
| Airtech Tuyau Spiralé | 121°C | White | Polyethylene |
| Airtech Tube PE | 121°C | White | Polyethylene |
| Airtech Raccord Nylon | 121°C | White | Nylon, available in angle, tap and T. |
| Airtech Connector resin RIC | 80°C | White | UHMW Polyethylene, flat base |
Miscellaneous products
| References | Properties | Features |
|---|---|---|
| Airtech Tac-Strip | Maximum use temperature : 100°C – white | Fiberglass with acrylic adhesive |
| Airtech Airtac 2 LH | Low toxicity, for temporary bonding of vacuum devices | spray version |
| Airtech Airsweep | Dry or peripheral vacuum fabrics (R1 and R2 with handle) | Tools for depositing and veneering in the corners of prepregs |
More informations :
Do you need information about Airtech ? Contact our technical department on +33 426 680 680 or fill in our contact form.
Download the Airtech brochure dedicated to composite market :
